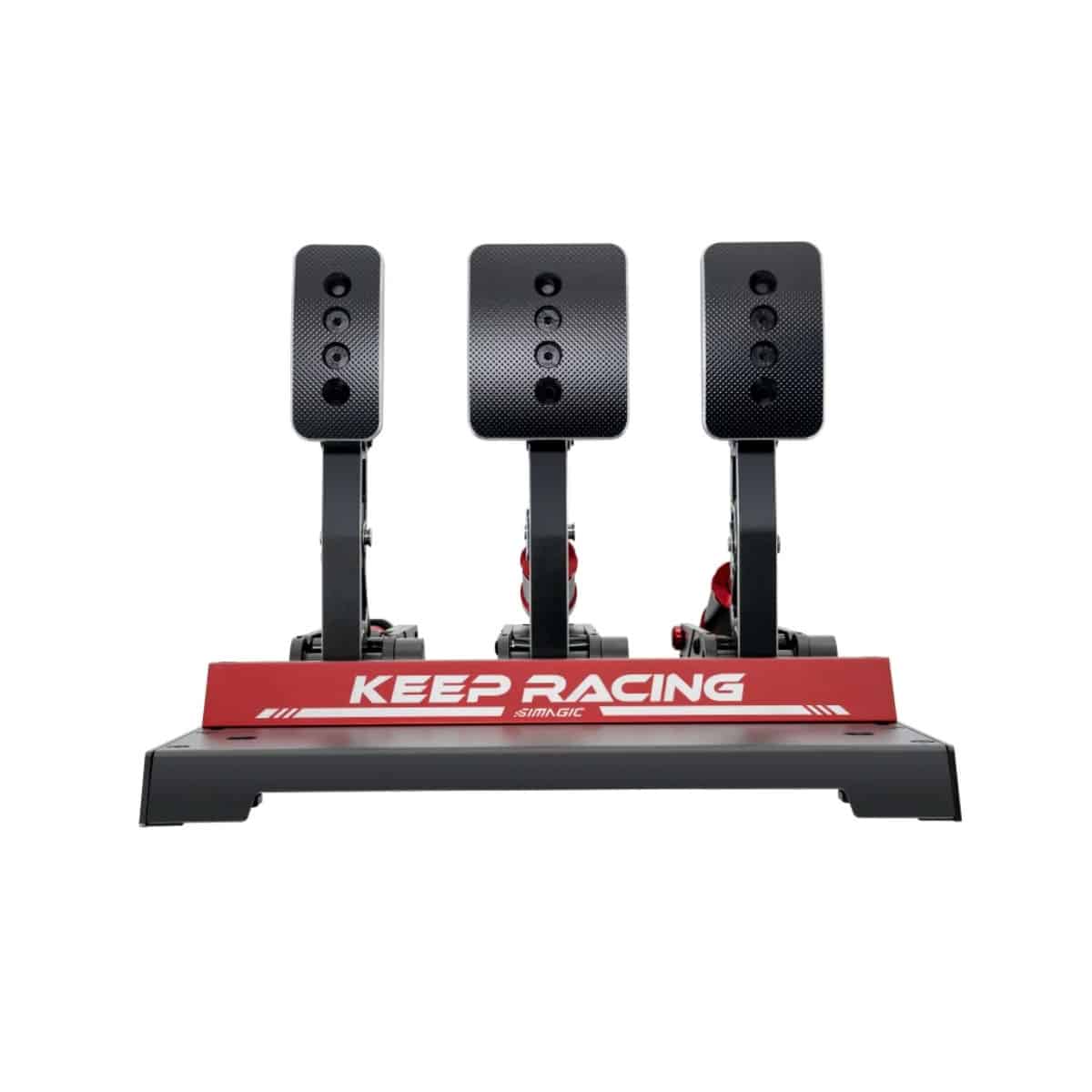

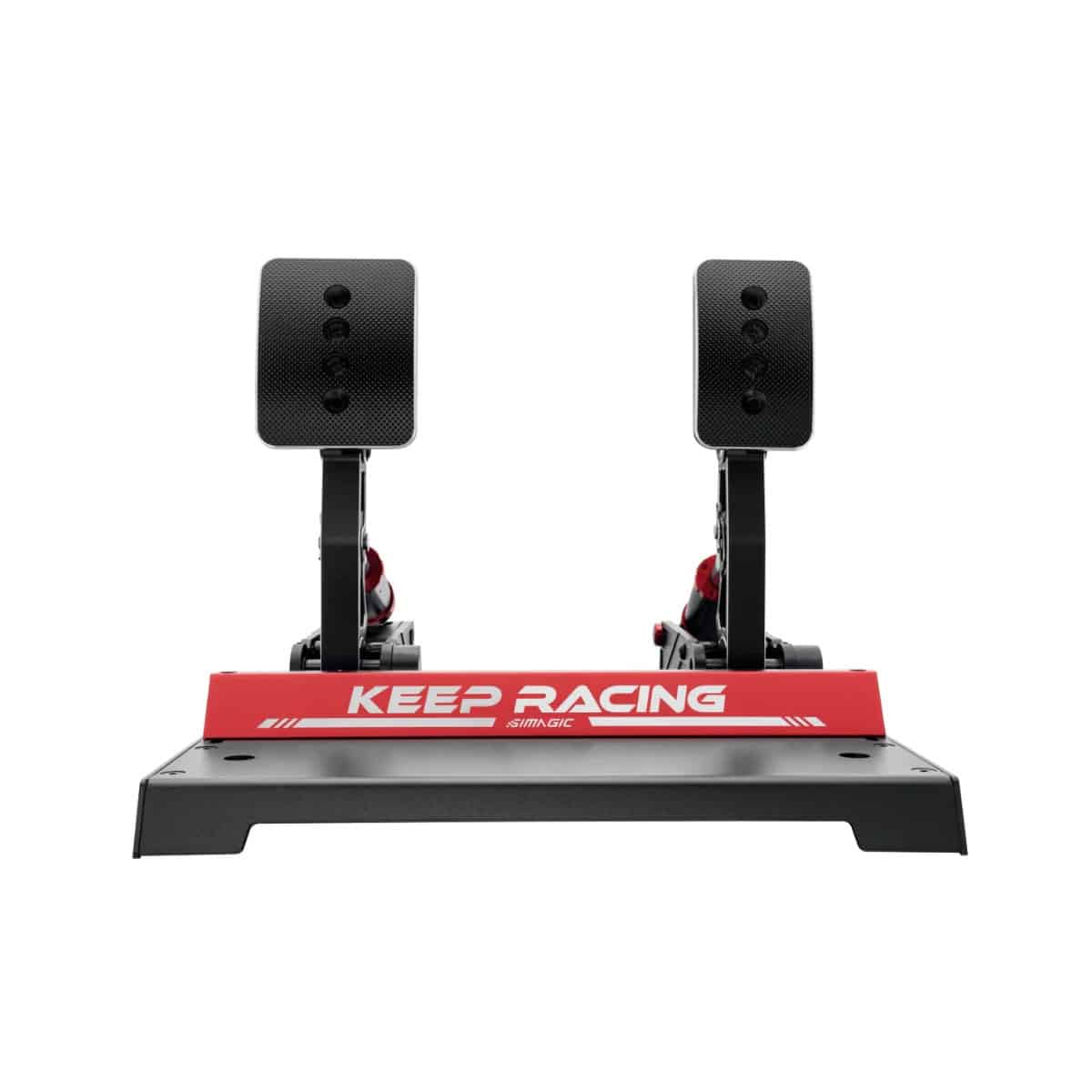

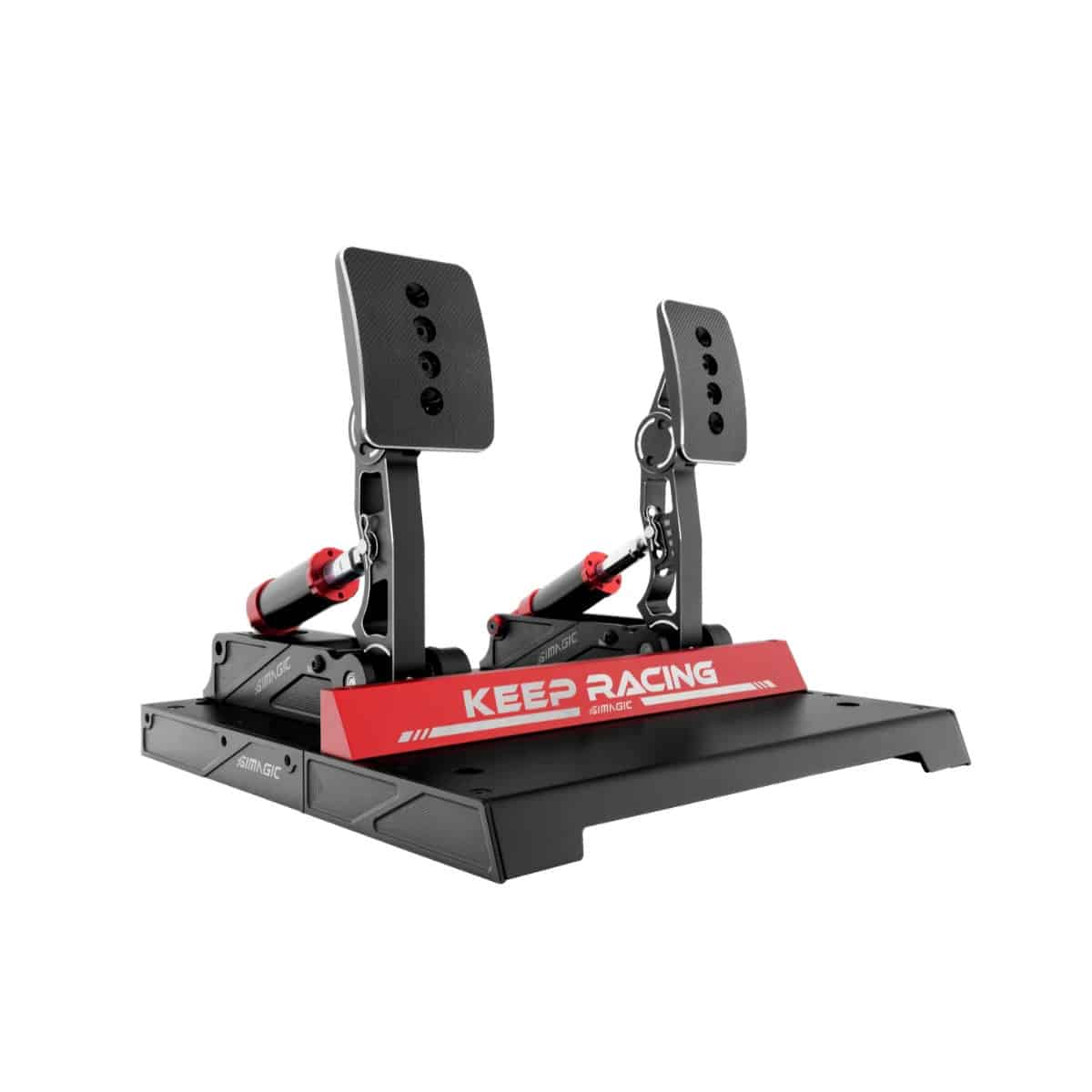

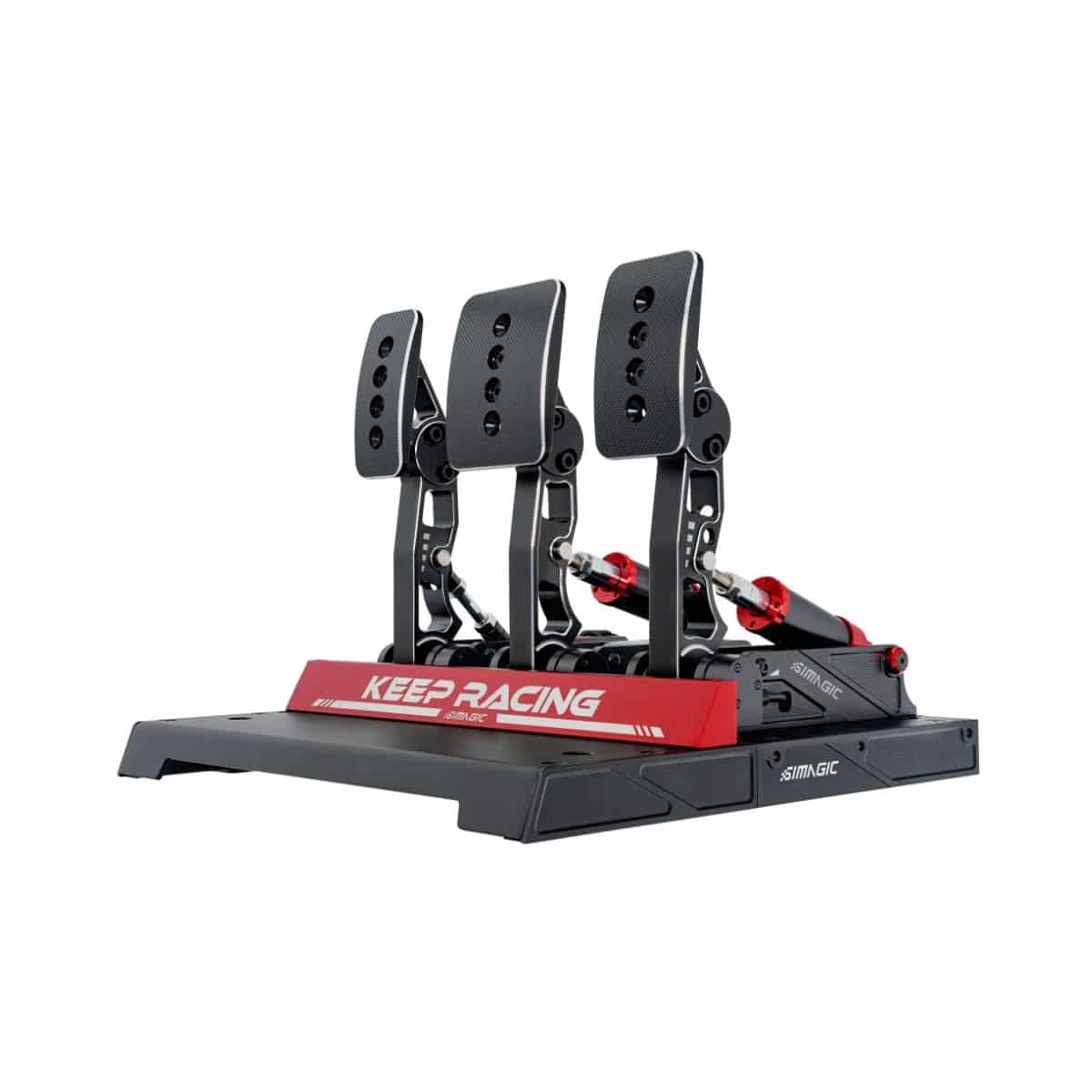

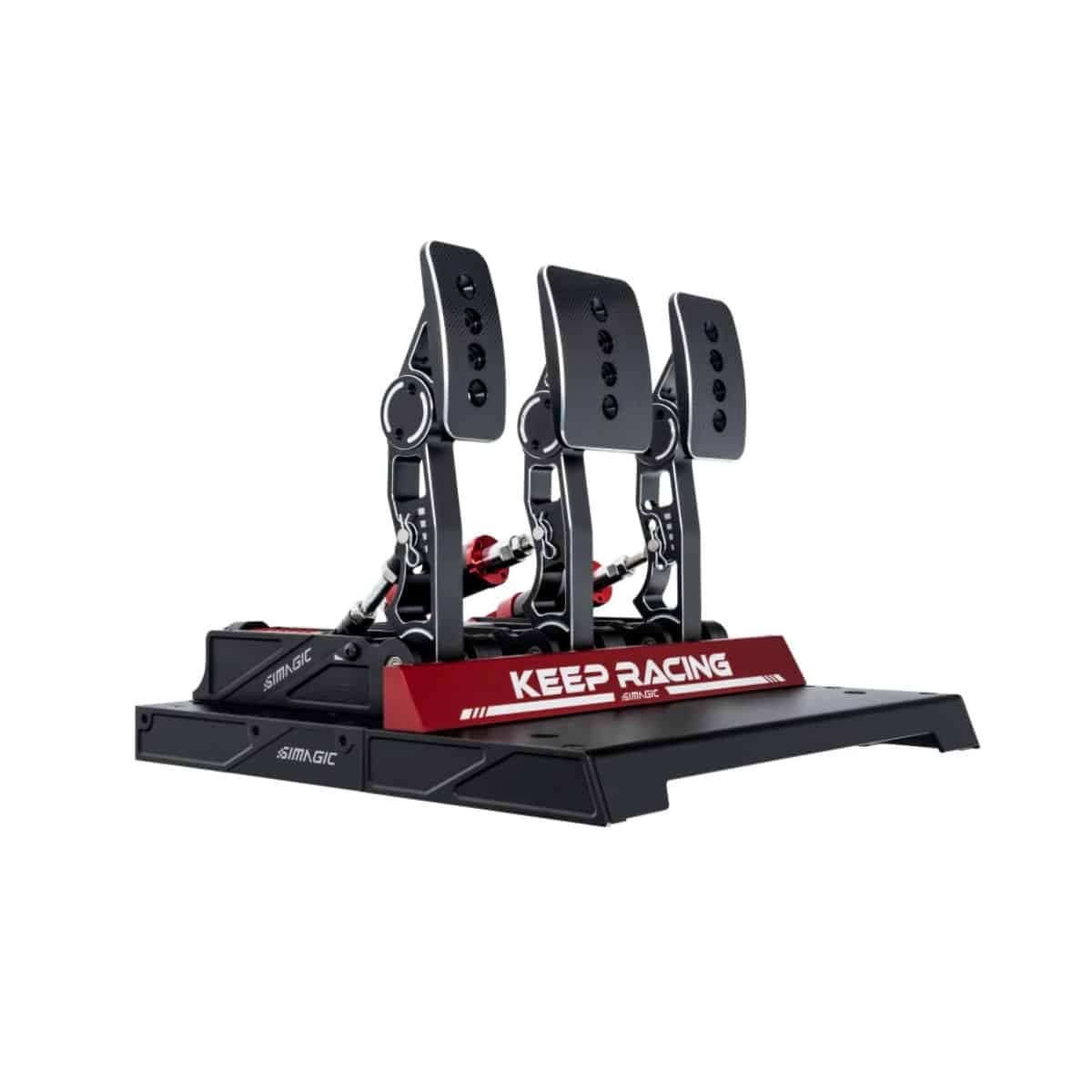

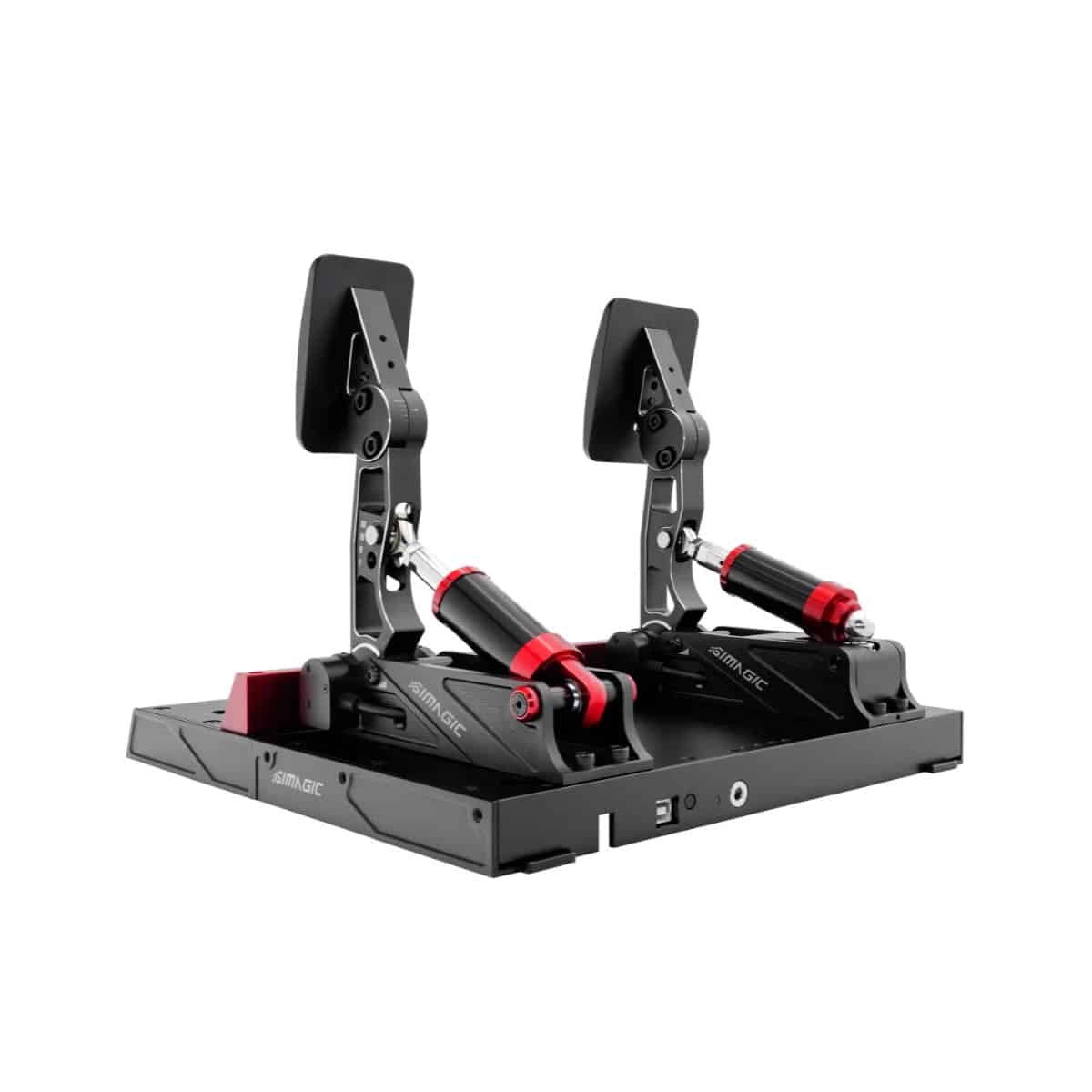

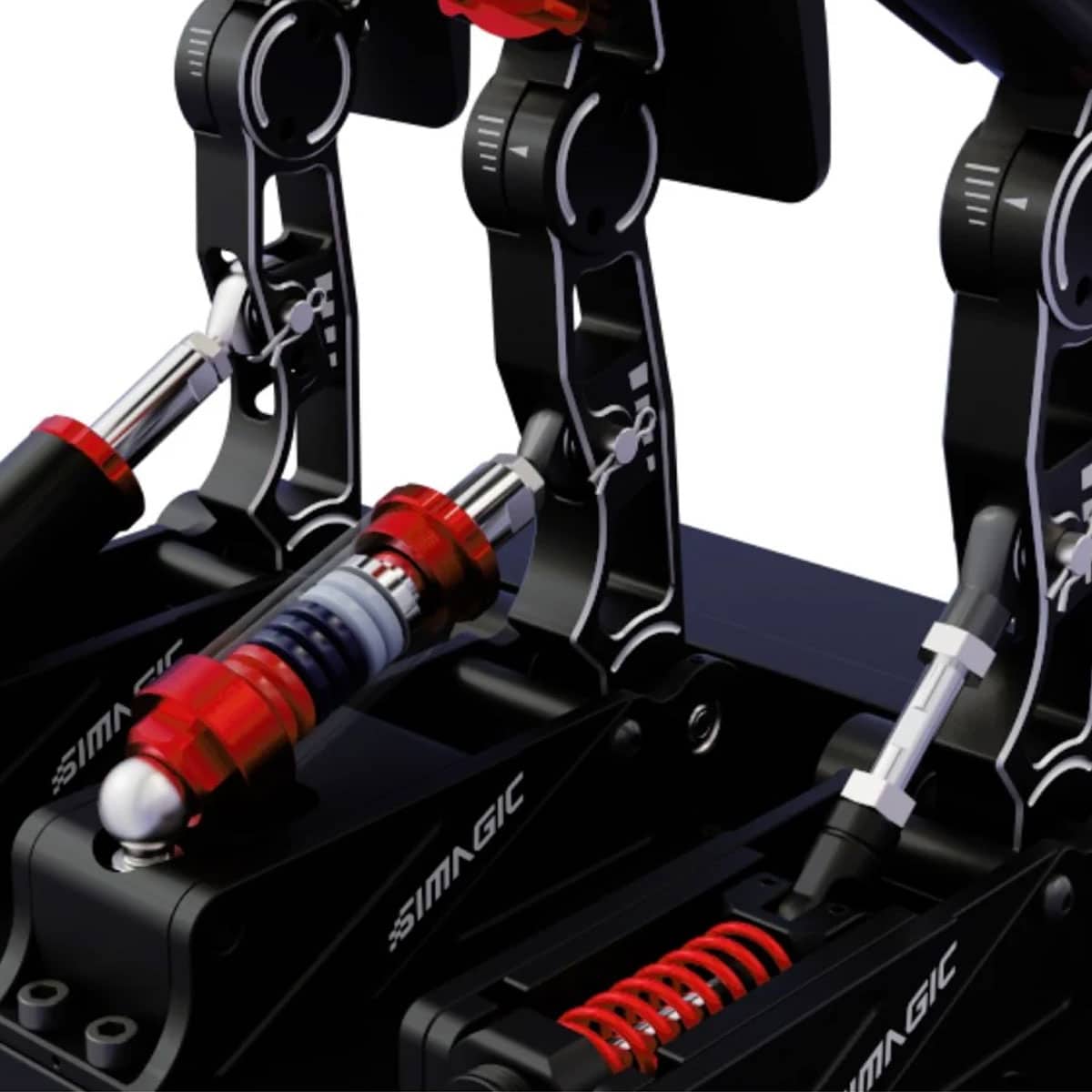

Simagic P1000 Modular Pedals
Simagic P1000 Modular Pedals
Product Description
The Simagic P1000 Modular Pedals (Standard) is a 3-pedal floor-mount sim racing set — comprising clutch, throttle, and brake — developed in collaboration with real race engineers including a Team KRC Technical Director and an FIA-certified data analyst. Built entirely from CNC-machined aluminum alloy with anodized pedal plates, the P1000 Standard delivers a solid, precise, and race-ready pedal feel straight out of the box, while serving as the foundation for Simagic's modular upgrade ecosystem.
The brake pedal ships with a choice of two sensing technologies: a 100 kg load cell for the short, firm travel associated with motorsport and formula-style cars, or a Hall angle sensor for a longer, more progressive travel suited to road and sports car driving styles. Adjustable elastomers let you fine-tune brake resistance to suit your preferred car class. Installation is quick — the standard floor-mount configuration goes together with just 8 screws using the included profile plate and wiring box, making it compatible with aluminum profile rigs out of the box. All pedal behavior is managed through Simagic's SimPro Manager 2.0 software, with full SimHub support for telemetry-driven features. And as your rig evolves, the P1000 Standard accepts bolt-on upgrades including haptic reactors, hydraulic systems, and RGB lighting modules — no need to replace the base pedals.
TECHNICAL SPECIFICATIONS
· Sensor Resolution: 12-bit (4096)
· Brake Sensor: 100 kg load cell
· Throttle / Clutch Sensor: Hall angle sensor
· Building Material: CNC aluminum alloy
· Pedal Plate: Anodized aluminum alloy
· Dimensions (L x W x H): 334.8 x 336 x 267 mm
· Net Weight: 5.65 kg (2-pedal) / 7.60 kg (3-pedal)
· Connectivity: USB (PC) or CAN-Bus (Simagic wheelbase)
· Adjustability: Travel, spacing, height, angle, linearity, brake force, deadzones
· Optional Upgrades: Haptic Reactor (P-HPR), Hydraulic Brake, Hydraulic Throttle
· Platform: PC + Simagic ecosystem
