Heusinkveld Ultimate+ Pedals

Professional-Grade Sim Pedals — Real Race Car Forces, Hydraulic Damping

Product Description

The Heusinkveld Ultimate+ Pedals are the top-of-the-line choice for sim racers who demand the absolute closest approximation to real-world motorsport hardware. Trusted by professional race car drivers and top Esports athletes alike, the Ultimate+ is engineered to simulate the true pedal loads found in real F1, GT3, LMP, and Indycar machinery — with a maximum brake force capability of 140 kg at the pedal plate. Where the Sprint tops out at 65 kg, the Ultimate+ doubles that capacity, making it the only choice for drivers replicating 1:1 forces from actual racing cars.

The headline differentiator over the Sprint series is the hydraulic damping system fitted to every pedal — adjustable 2-way damping on the brake and clutch, and adjustable 1-way damping on the throttle. This gives the Ultimate+ its characteristic firm, planted feel that closely mirrors the resistance and feedback of genuine motorsport pedal boxes. Underpinning it all is a 200 kg load cell on the brake, 9 brake resistance settings via Heusinkveld's custom elastomers, and a dedicated external 12-bit USB controller box for a clean, stable signal. The SmartControl software platform — including SmartControl Live for in-session adjustments — ensures every setting is dialed in for your exact driving style and the car you're racing.

Key Features

• 200 kg load cell brake — up to 140 kg actual pedal force
• Hydraulic damping on all 3 pedals (adjustable)

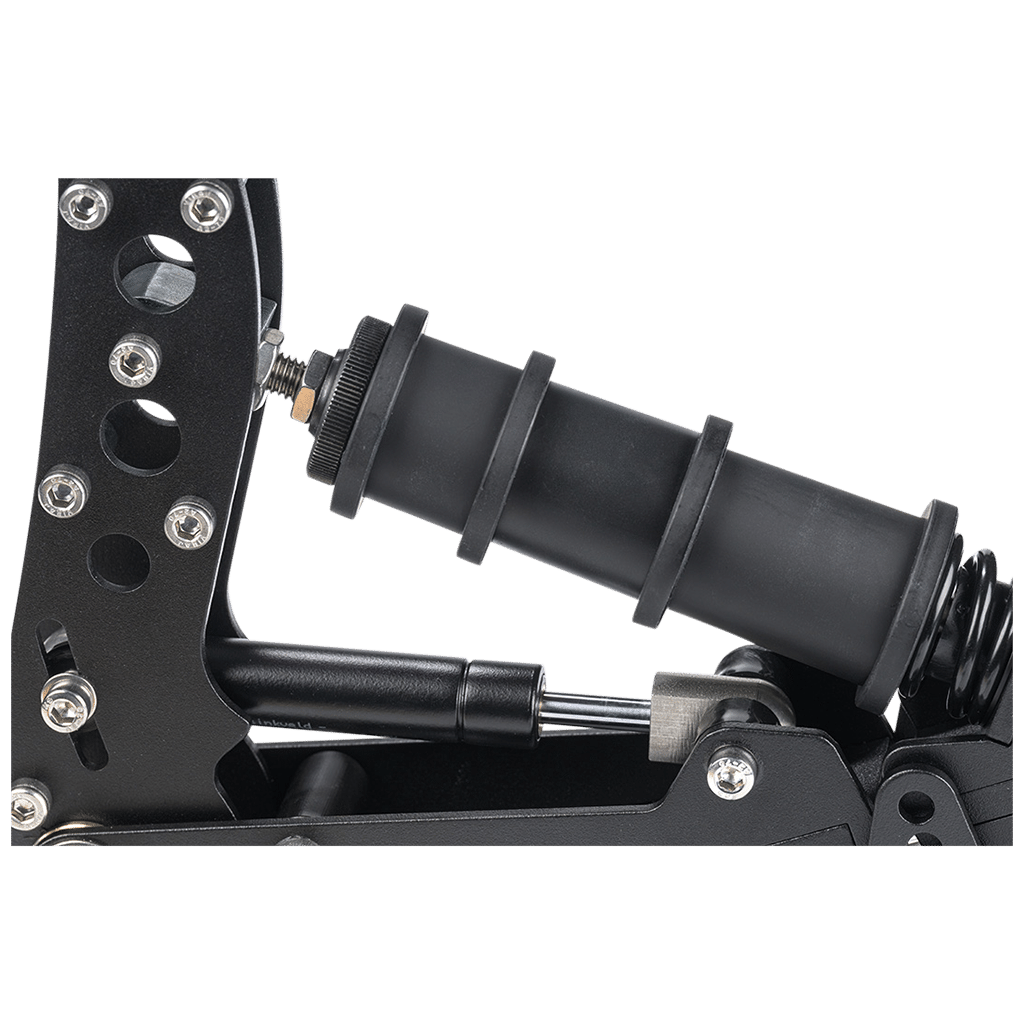

• 9 brake resistance settings via custom elastomers
• Trusted by real race car drivers & professional Esports drivers
• External 12-bit USB controller box (metal enclosure)
• Suitable for professional driver training & commercial use
• Powder-coated & glass bead-blasted stainless steel
• SmartControl software — curves, deadzones, force mapping
• SmartControl Live — change profiles while driving
• Durability tested to 1 million duty cycles
• CE & EMC certified
• Available as 2-pedal (throttle + brake) or 3-pedal set

Technical Specifications

Adjustment Options

All Pedals

• Pedal angle
• Pedal plate height
• Hydraulic damping
• Fore/aft position

Throttle & Clutch

• Pedal travel
• Overall pedal force
• Pedal spring preload
• Force curve (clutch)

Brake

• 9 resistance settings (elastomers)
• Coil spring preload

Software (SmartControl)

• Custom output curves
• Top & bottom deadzones
• Save/load profiles
• Live profile switching

Sprint vs Ultimate+ — At a Glance

In the Box

• Ultimate+ Pedal Set (2 or 3 pedals)
• External USB Controller Box
• USB Cable
• Mounting Bolts,
• Washers & Flanged Nuts
• Installation & Adjustment Tools
• Manual

Important: Ultimate+ Pedals require mounting to a rigid full frame rig due to the high operating forces (up to 140 kg). They cannot be used on a floor or in a wheel stand. An optional Ultimate+ Baseplate is available separately. Suitable for both home and commercial/professional driver training environments.
