Heusinkveld Sprint Pedals

Load Cell Precision for Home Sim Racers & Esports Drivers

Product Description

The Heusinkveld Sprint Pedals are the benchmark entry point into true load cell sim racing hardware — a strong, compact, and highly adjustable set engineered for home simulator use and competitive Esports performance. Built from powder-coated and glass bead-blasted stainless steel, the Sprints are designed to last, with all critical pivot points using slide bearings that have been durability-tested for over one million cycles. Insensitive to dust and dirt, they require no routine maintenance and maintain accuracy lap after lap.

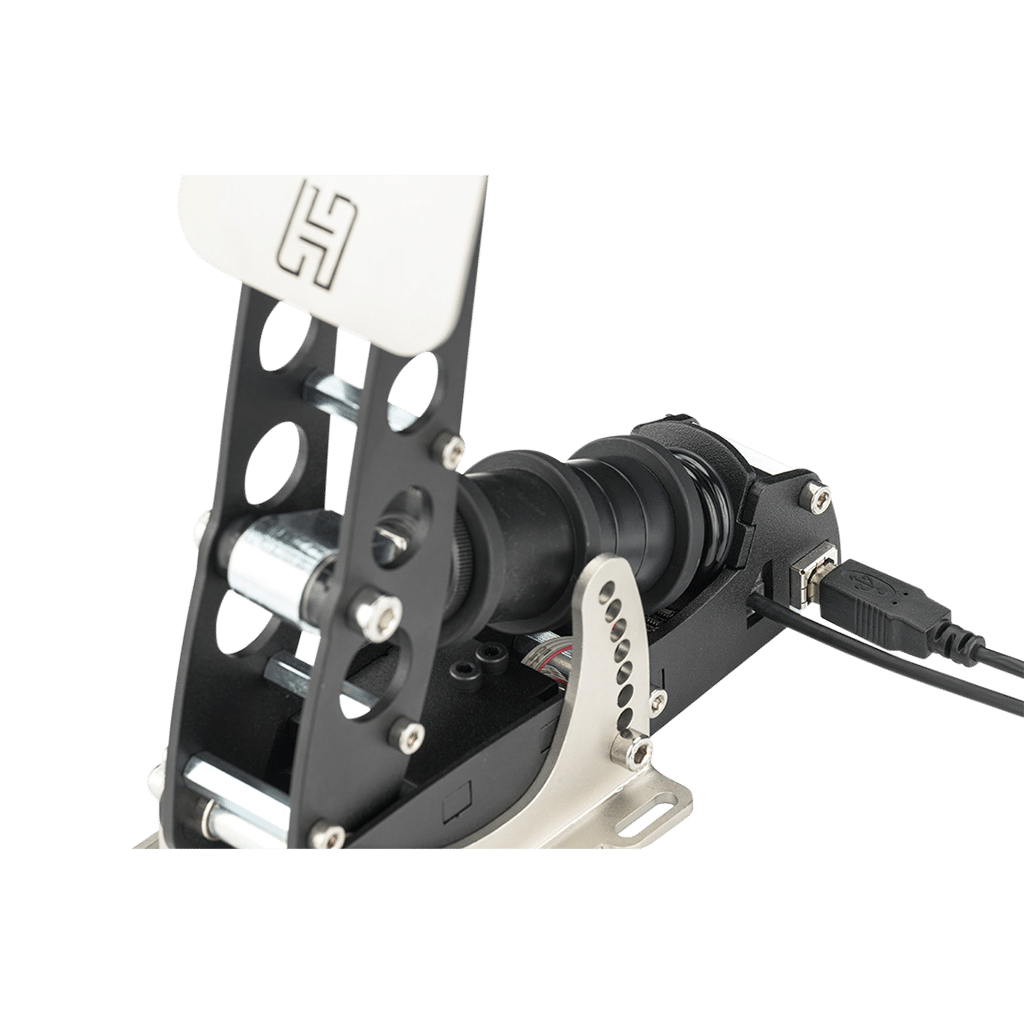

At the heart of the Sprint's brake pedal is a 120 kg load cell — the same force-based technology used in real race car simulators — capable of delivering up to 65 kg of actual braking force at the pedal plate. A dual-stage braking system with custom elastomers produces a progressive, realistic brake feel, and six different resistance settings let you fine-tune the firmness to match anything from road cars to LMP machinery. The integrated SmartControl software rounds out the package, allowing real-time mapping of output curves, deadzones, and brake force — all without needing to recalibrate.

Key Features

• 120 kg load cell brake — up to 65 kg actual pedal force

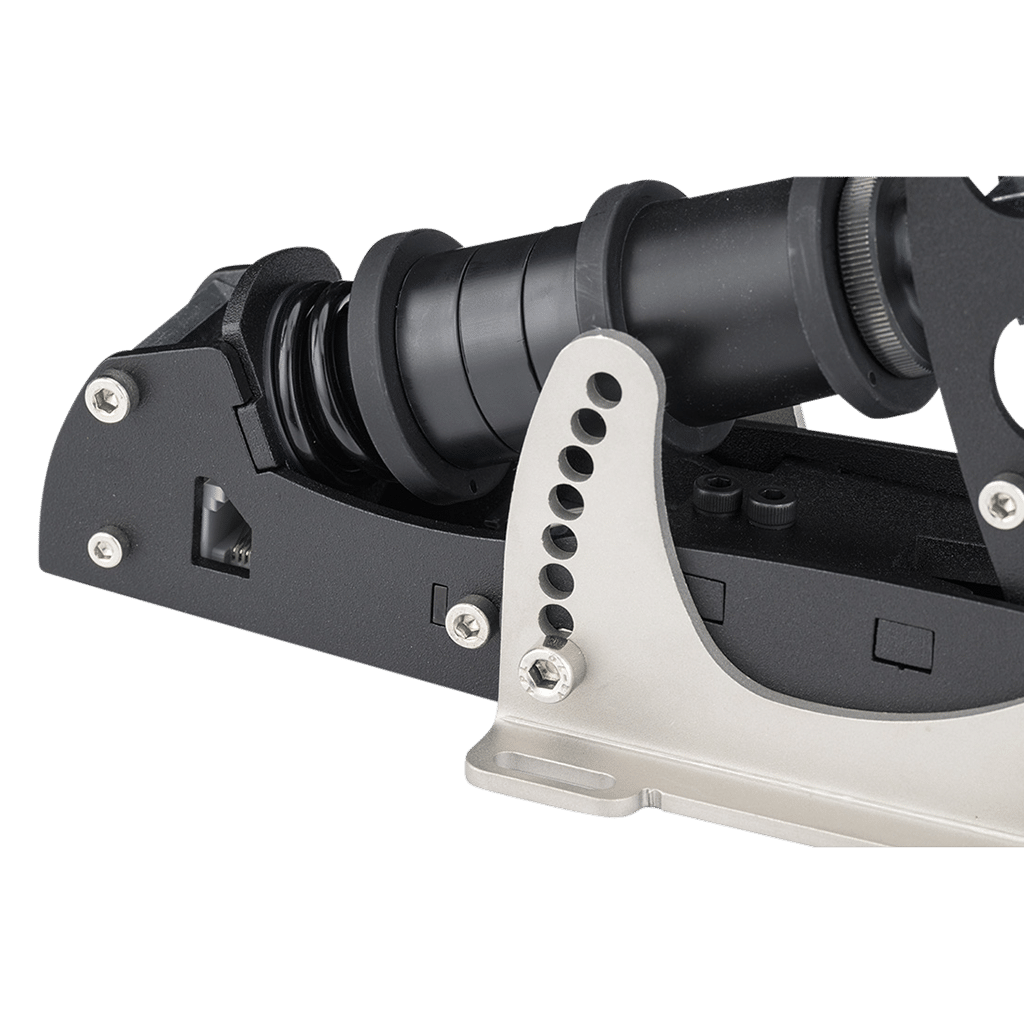

• 6 brake resistance settings via custom elastomers
• Dual-stage brake system (coil spring + elastomers)
• Powder-coated & glass bead-blasted stainless steel
• SmartControl software — curves, deadzones, force mapping
• SmartControl Live — change settings while driving
• Electronics integrated in brake pedal — minimal cable clutter
• Conformal-coated controller board (moisture & dust resistant)
• Durability tested to 1 million duty cycles
•  CE & EMC certified
•  Plug and play — no recalibration needed after adjustments

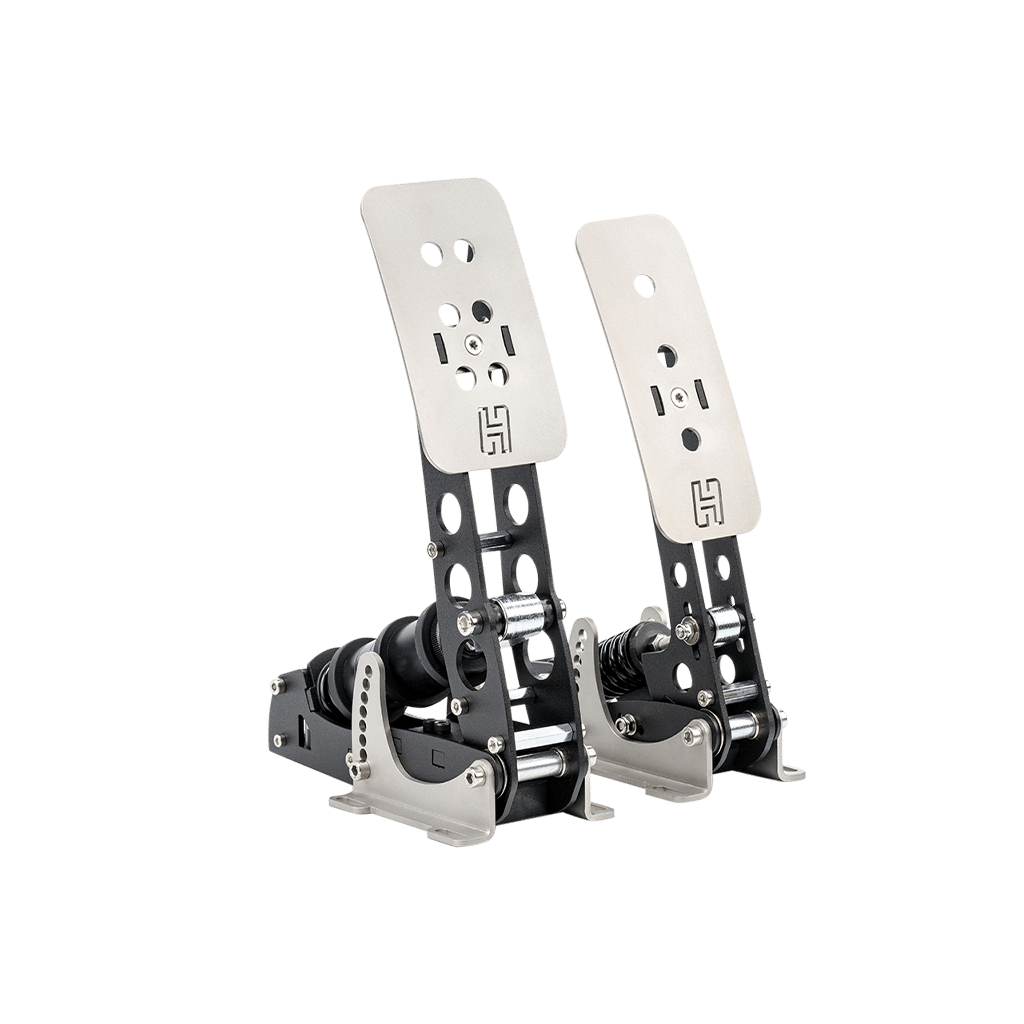

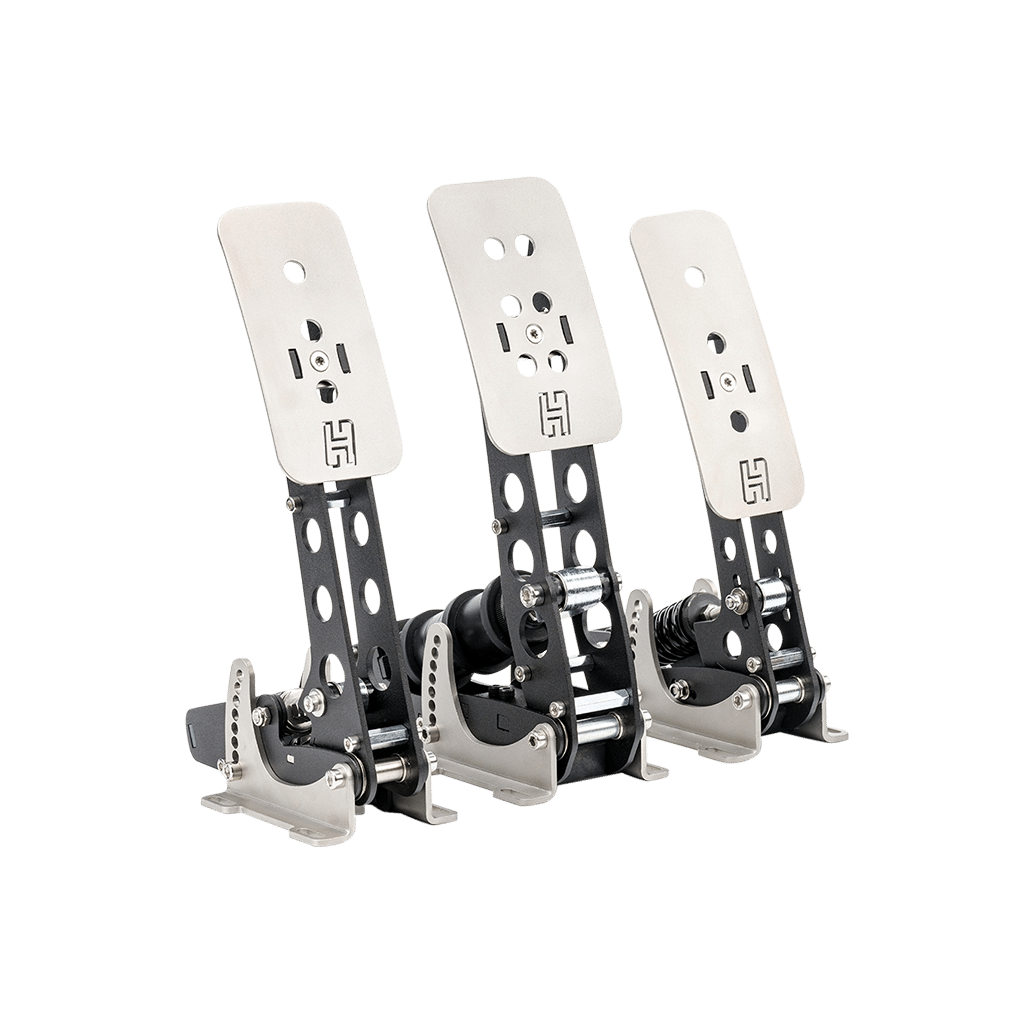

• Available as 2-pedal (throttle + brake) or 3-pedal set

Technical Specifications

Adjustment Options

All Pedals

• Pedal angle
• Pedal plate height
• Fore/aft position

Throttle & Clutch

• 5 pedal travel settings (throttle)
• Overall pedal force

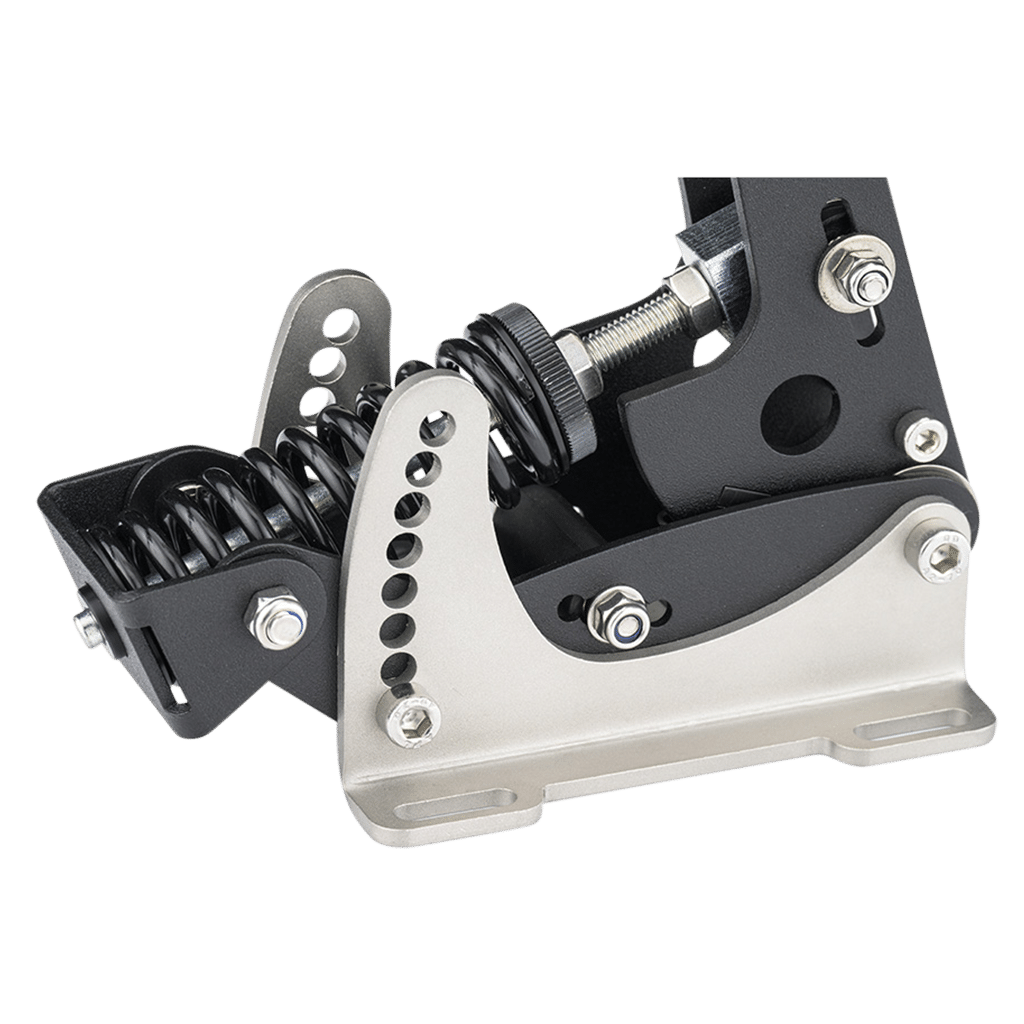

• Pedal spring preload
• Force curve (clutch)

Brake

• 6 stiffness settings (elastomers)
• Coil spring preload

Software (SmartControl)

• Max brake force
• Custom output curves
• Top & bottom deadzones
• Save/load profiles

In the Box

• Sprint Pedal Set (2 or 3 pedals)
• USB Cable
• Mounting Bolts (M5x12, M5x20, washers & flanged nuts)
• Installation & Adjustment Tools
• Manual

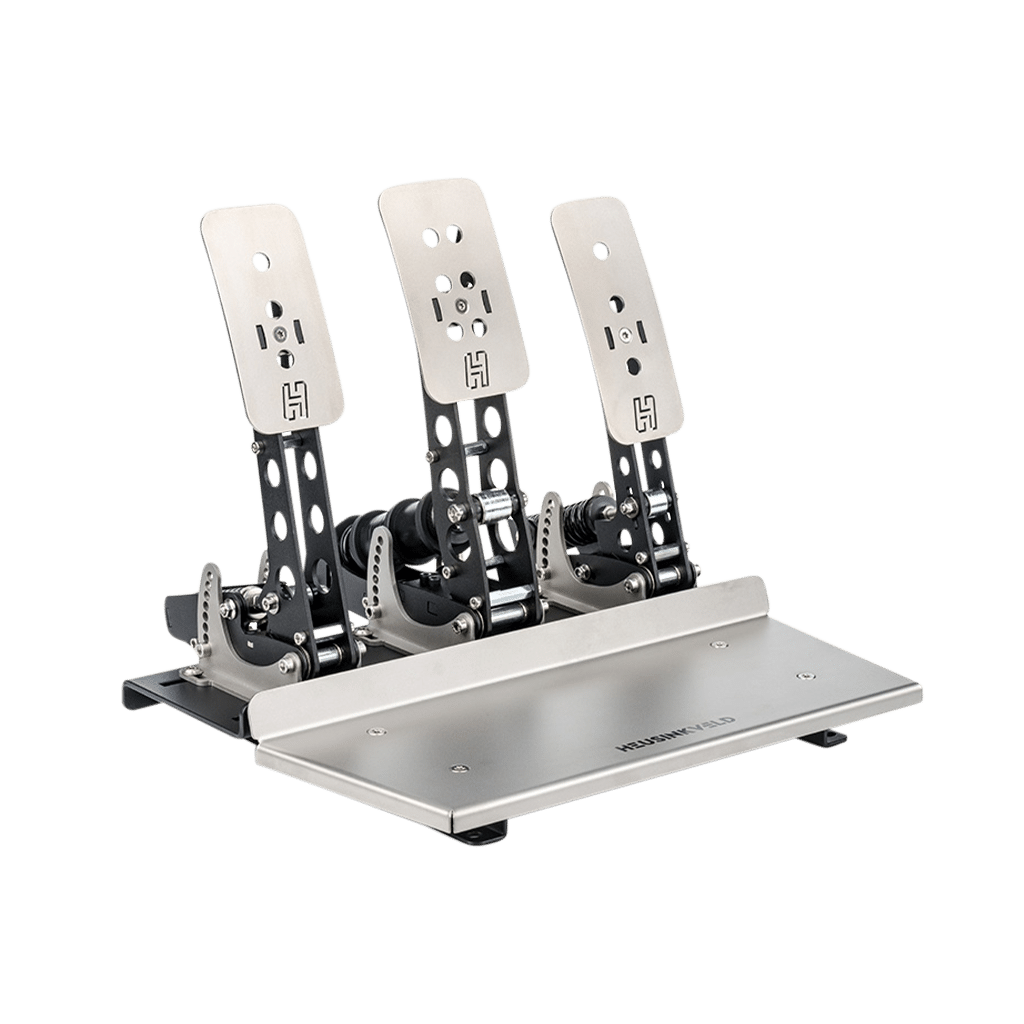

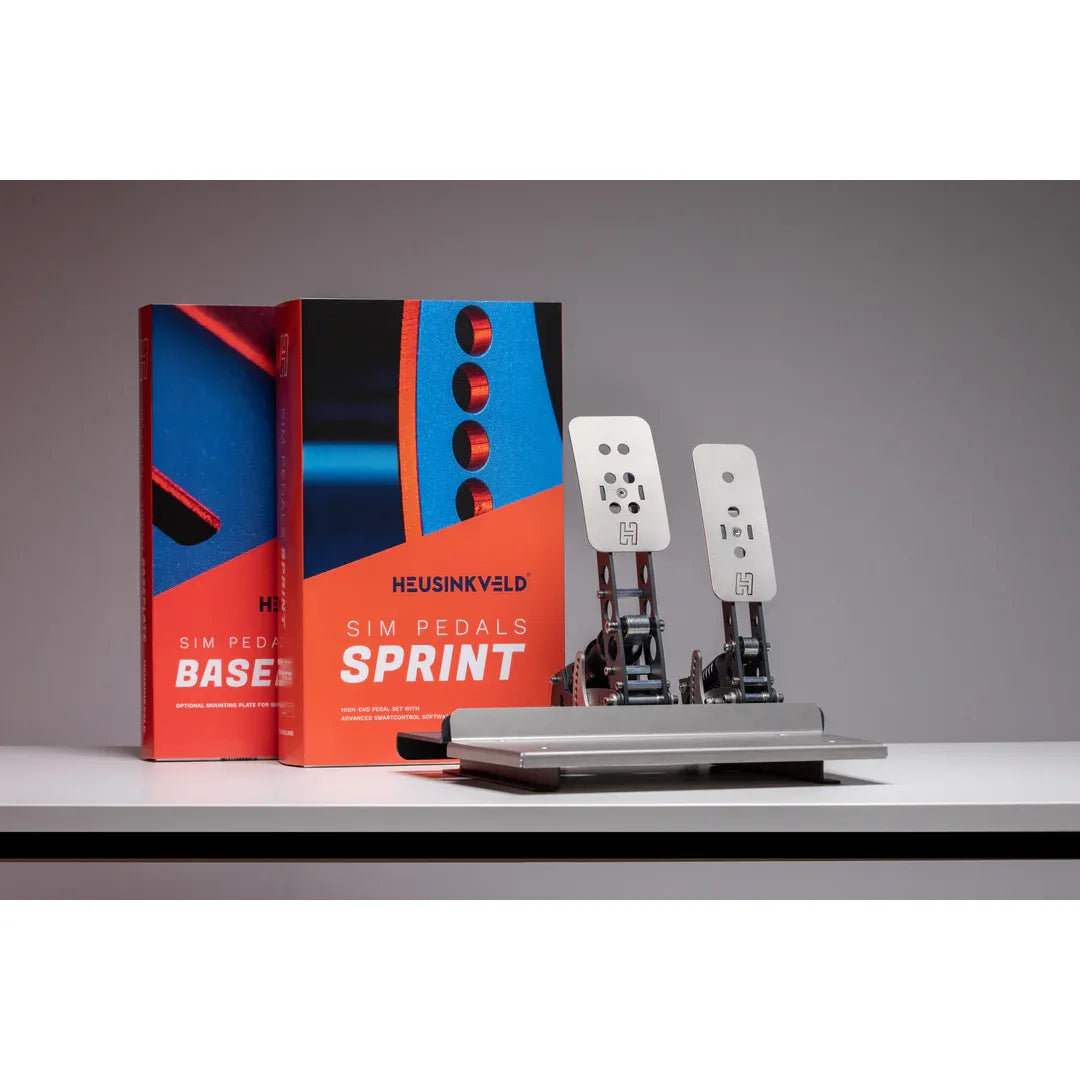

Important: Sprint Pedals require mounting to a rigid full frame rig. They cannot be used on the floor or in a wheel stand without a solid structural connection. An optional Sprint Baseplate is available separately for easier rig mounting.
